Vital PC connections for your Vingtor VMP / Stentofon MPC & Compact exchanges .

Standard 0-modem based connectiones.

Use standard terminal programs or special programs to use these connections .

Updated and more schematics to come on this page .

 Jo Tech Service, Lykkmarka 53, 7081 Sjetnemarka, Norway.

Joar Falstad

--

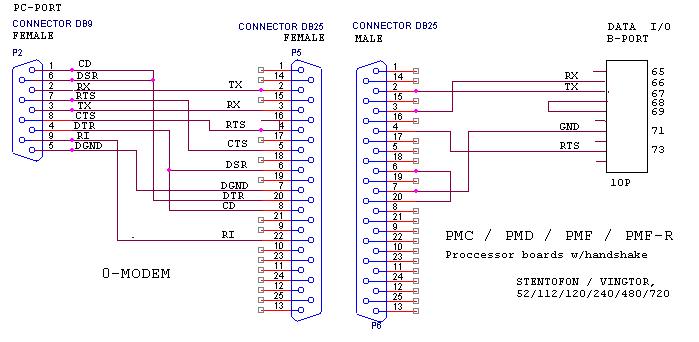

PC connection  >  PMC/PMD/PMF/PMFR .  ( Programming / Logging / Backup / Fault finding )

____________________________________________________________________

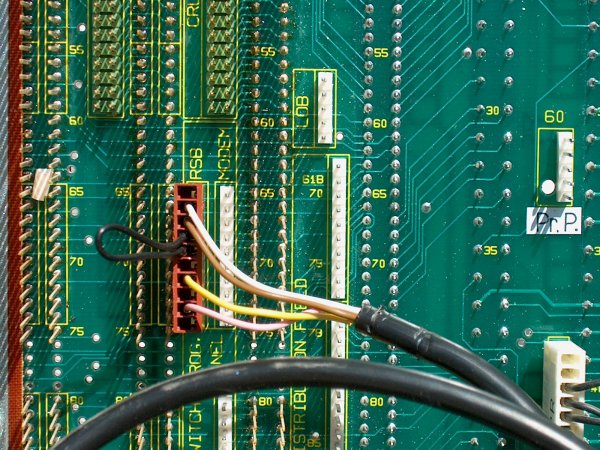

PC connection  >  MPC / VMP52  ( comport  >  RSB )

____________________________________________________________________

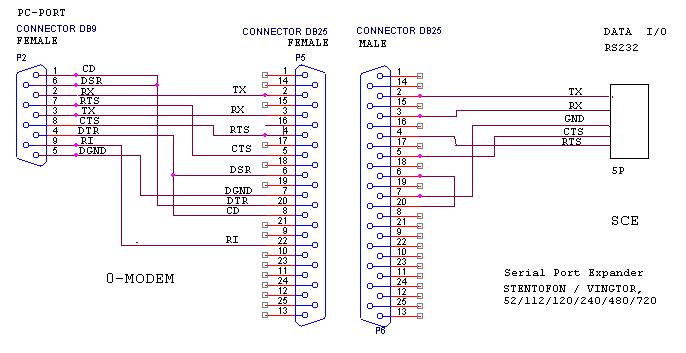

PC connection  >  SCE     ( 8 port seriell expander board RS232/RS422 )

____________________________________________________________________

PC connection  > DPB    (  programmable universal proccessor board )

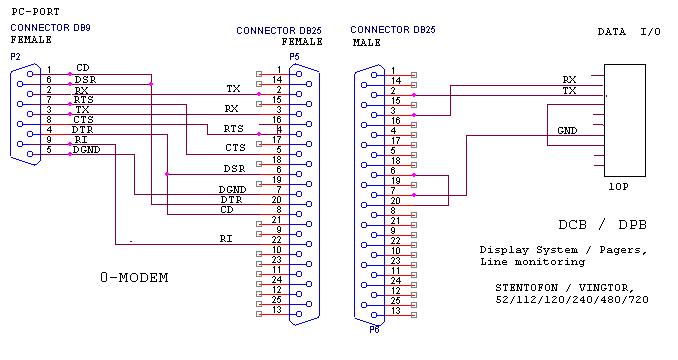

PC connection  > DCB   ( Display control board )

____________________________________________________________________

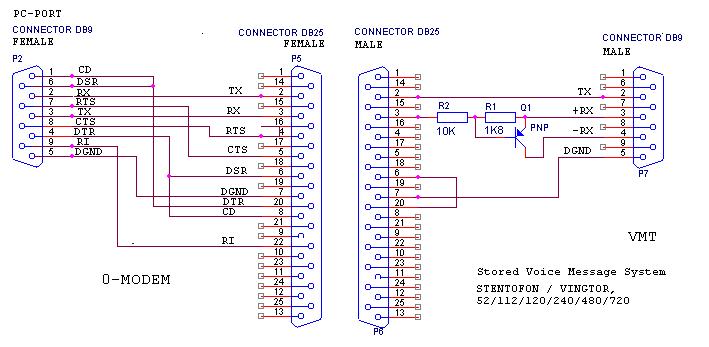

PC connection  >  VMT    (  Stored voice message system )

____________________________________________________________________

PC connection  >  PCB-2   ( Stentofon Compact / VMP32 )

____________________________________________________________________

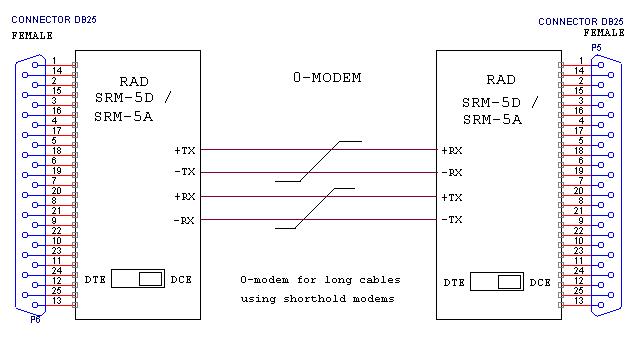

PC connection  >  RAD   ( Shorthold modem )

____________________________________________________________________
